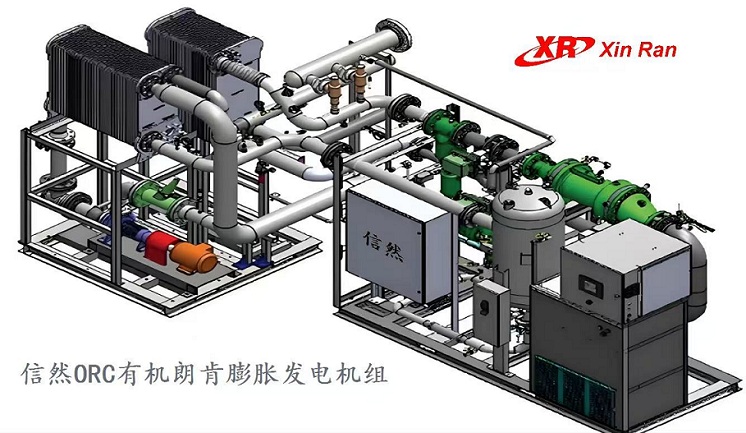

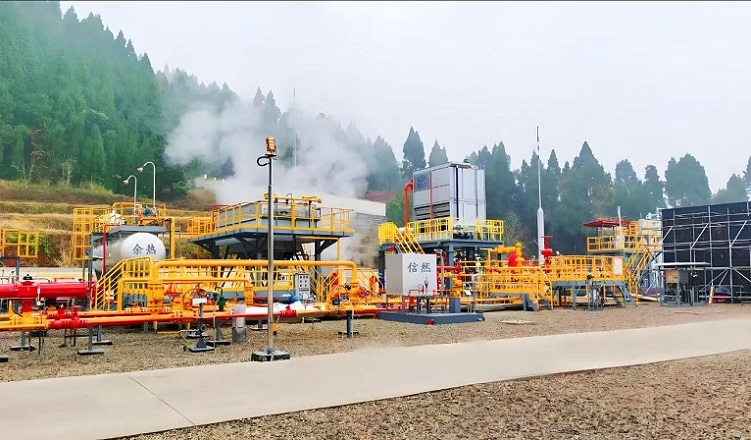

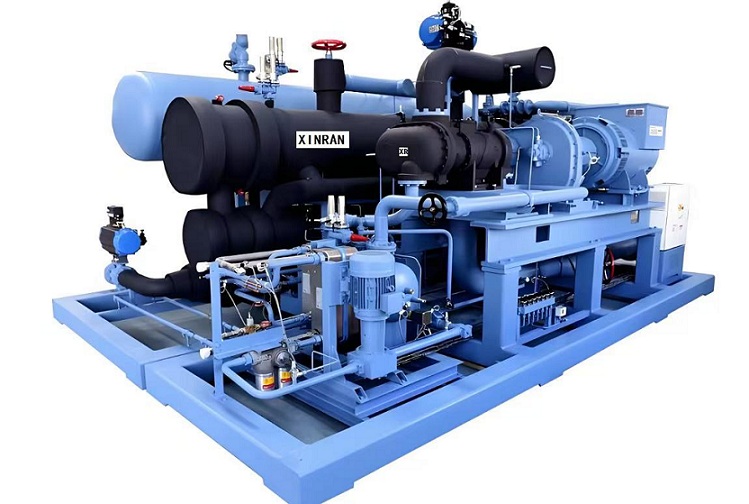

On October 17th, Xinran ORC organic Rankine screw expansion generator sets were exported to the Middle East to assist in geothermal power generation projects. Xinran ORC organic Rankine screw expansion generator sets are devices that utilize medium and low-temperature waste heat (80°C-300°C) to generate electricity by converting thermal energy into electrical energy through a screw expander. This technology is efficient and stable, and is suitable for various scenarios such as industrial waste heat and geothermal energy.

10月17日，信然ORC有机朗肯螺杆膨胀发电机组出口（Middle East）中东助力地热发电项目。信然ORC有机朗肯螺杆膨胀发电机组是一种利用中低温废热（80℃-300℃）进行发电的设备，通过螺杆膨胀机将热能转化为电能。该技术具有高效、稳定的特点，适用于工业余热、地热等多种场景。

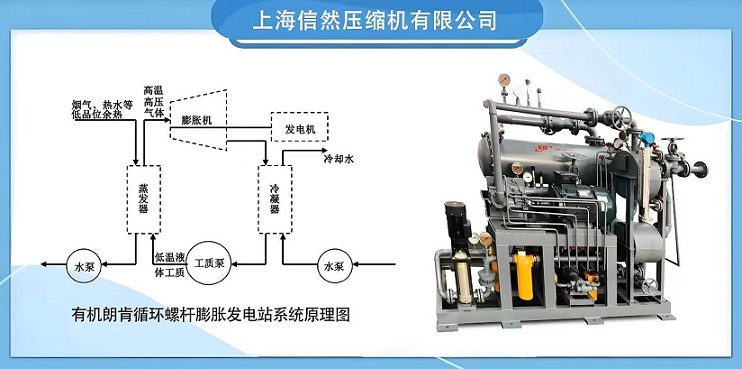

Working principle: Organic working fluid (such as R245fa) is used as the medium to achieve the conversion of thermal energy into mechanical energy through evaporation, expansion, and condensation cycles. Hot fluids (waste steam, flue gas, etc.) enter the evaporator to heat the working fluid, generating high-pressure steam that drives the screw expander to do work. Finally, the heat is released through the condenser to complete the cycle.

工作原理：采用有机工质（如R245fa）作为媒介，通过蒸发、膨胀、冷凝循环实现热能到机械能的转换。热流体（废蒸汽、烟气等）进入蒸发器加热工质，产生高压蒸汽推动螺杆膨胀机做功，最终通过冷凝器释放热量完成循环。

1. Application Scenario: It is suitable for low-grade waste heat recovery in industries such as petrochemical, chemical, and metallurgical, as well as for the utilization of solar and geothermal energy.  ‌

   Efficiency performance: power generation efficiency of 8%-12%, isentropic efficiency of 85%-88%,

   The investment payback period can be shortened to less than 3 years.  ‌

   Modular design: supports 300kW to 20MW

   Customized modules to accommodate application needs of different scales.

1. 适用场景‌：适用于石化、化工、冶金等行业的低品位余热回收，以及太阳能、地热能利用。 ‌
2. ‌效率表现‌：发电效率8%-12%，等熵效率达85%-88%，投资回收期可缩短至3年以内。 ‌
3. ‌模块化设计‌：支持300kW至20MW定制模块，适配不同规模的应用需求。 ‌

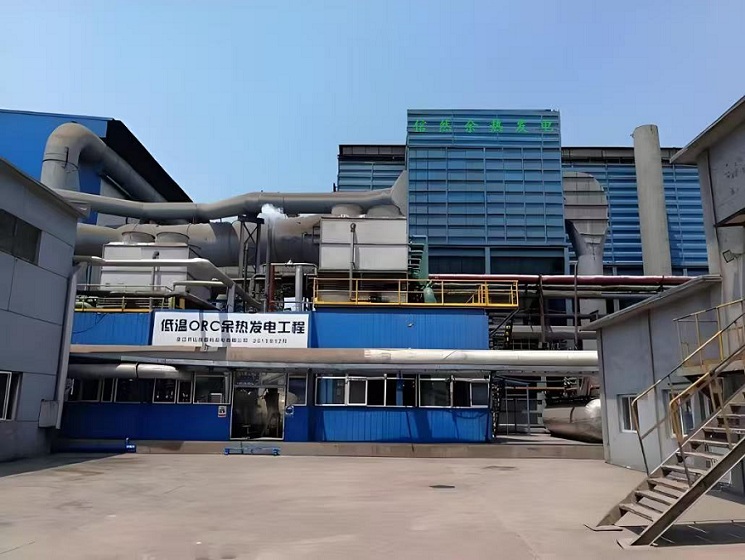

Application case: In a certain industrial project, this unit achieved an annual power generation of 20.56 million kWh by recycling 115°C hot water, demonstrating significant energy-saving and emission-reduction effects.

应用案例：在某工业项目中，该机组通过回收115℃热水实现年发电量2056万kWh，节能减排效果显著。 ‌
